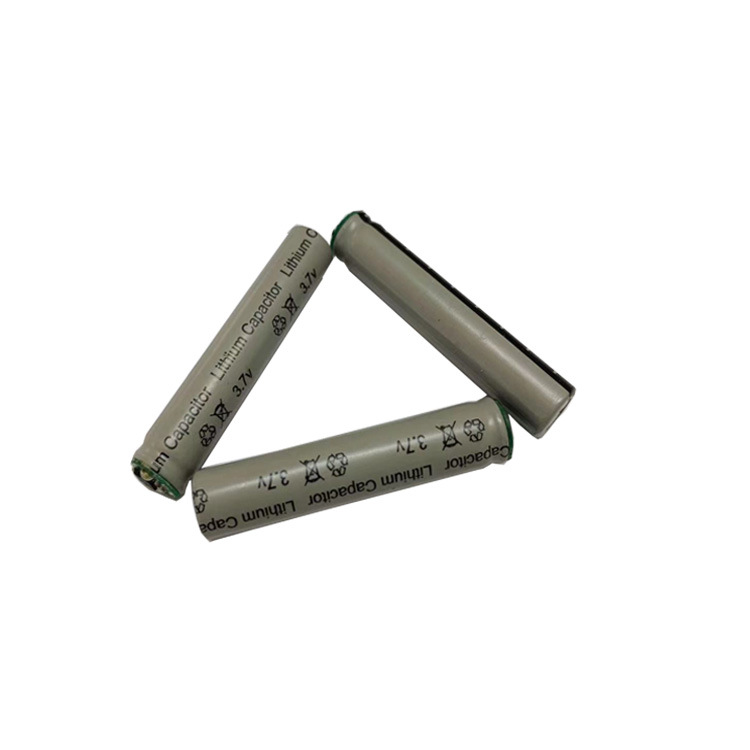

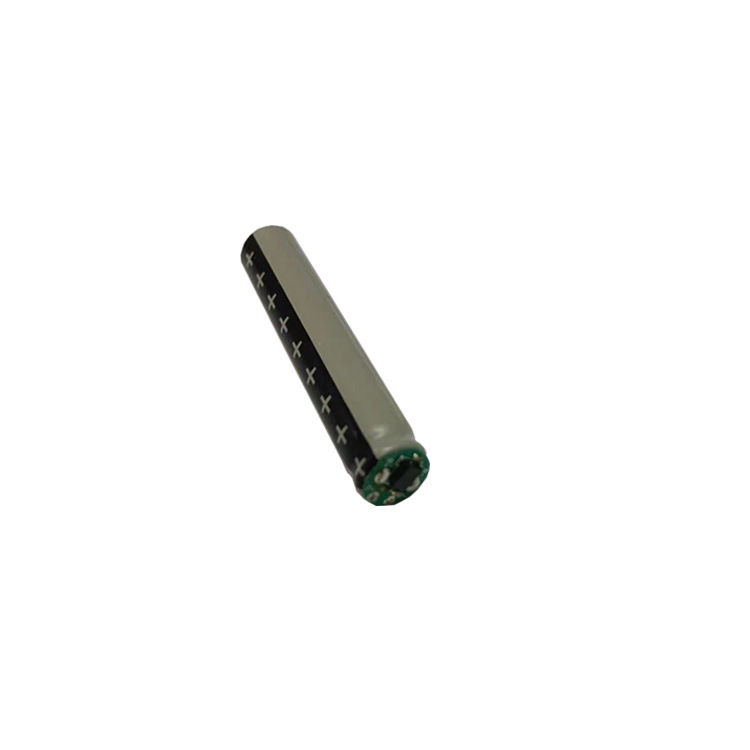

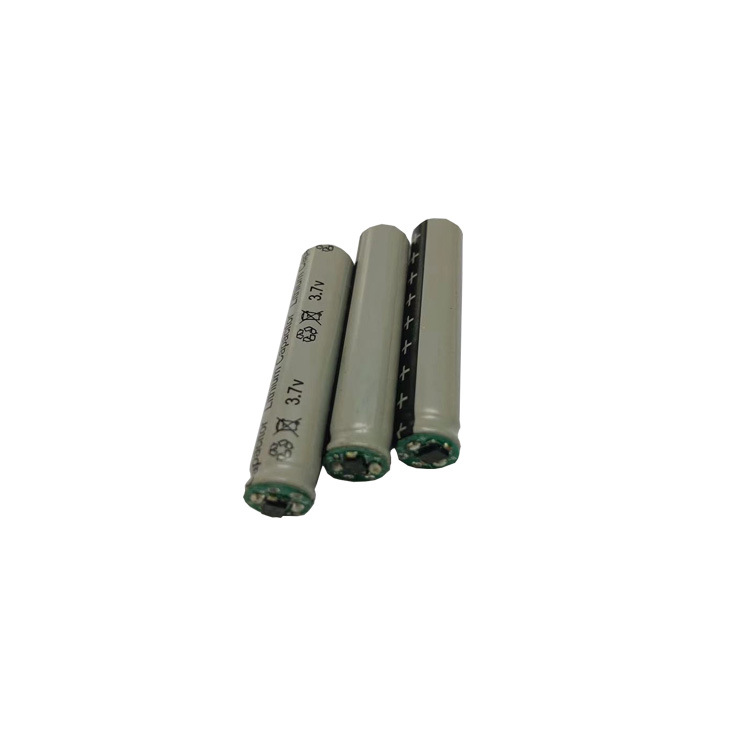

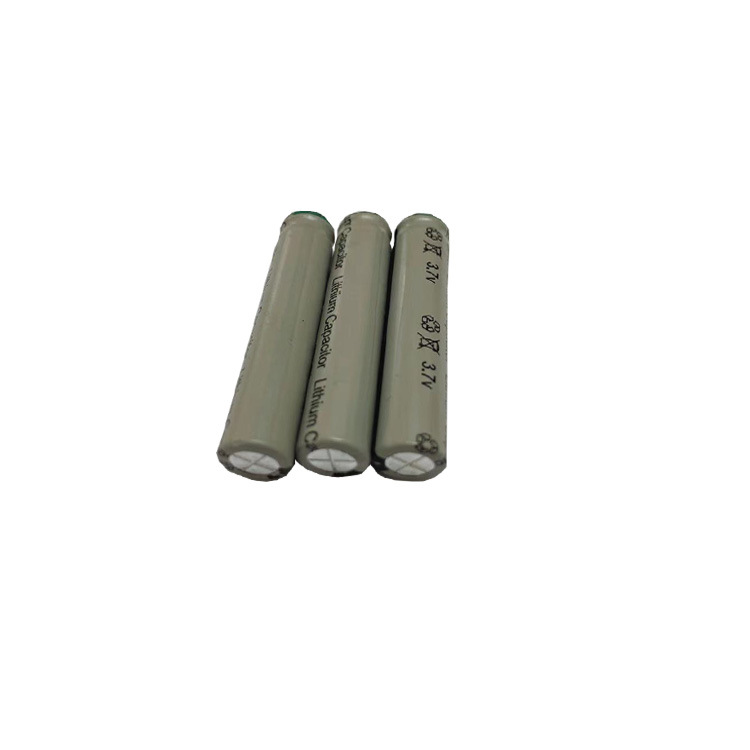

3.7V small cylindrical capacitive lithium battery 08400 170mAh with protective board rechargeable battery

Short Description:

Specification: ICR08400-3.7V-170mahBattery type: cylindrical lithium batteryComb...


Product Detail

Product Tags

Specification: ICR08400-3.7V-170mah
Battery type: cylindrical lithium battery
Combination method: 1S
Nominal voltage: 3.7V
Nominal capacity: 170mah
Cycle count: 500 times
Scope of use: Bluetooth
Product certification: ROHS
Battery cover cap: flat head+protective plate
Charging voltage: 4.2V
Discharge voltage: 3.0V
Charging current: 0.17
Discharge current: 170mah
Maximum continuous discharge current: 510mah
Maximum continuous charging current: 170mah
Weight: 6.6g
Storage temperature: 5-30 degrees
Product size: 8.1 * 42.8mm
Shelf life: 1
Imported or not: No
