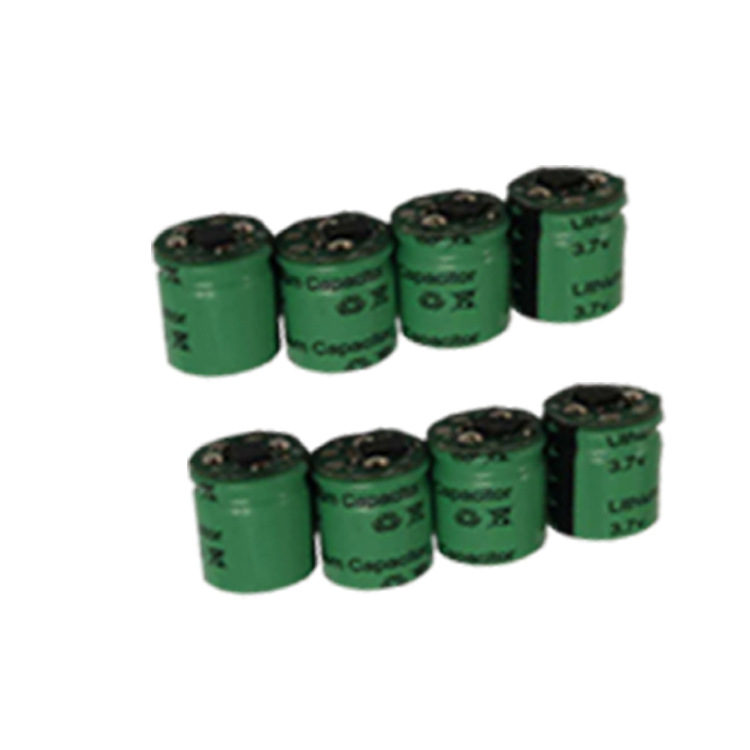

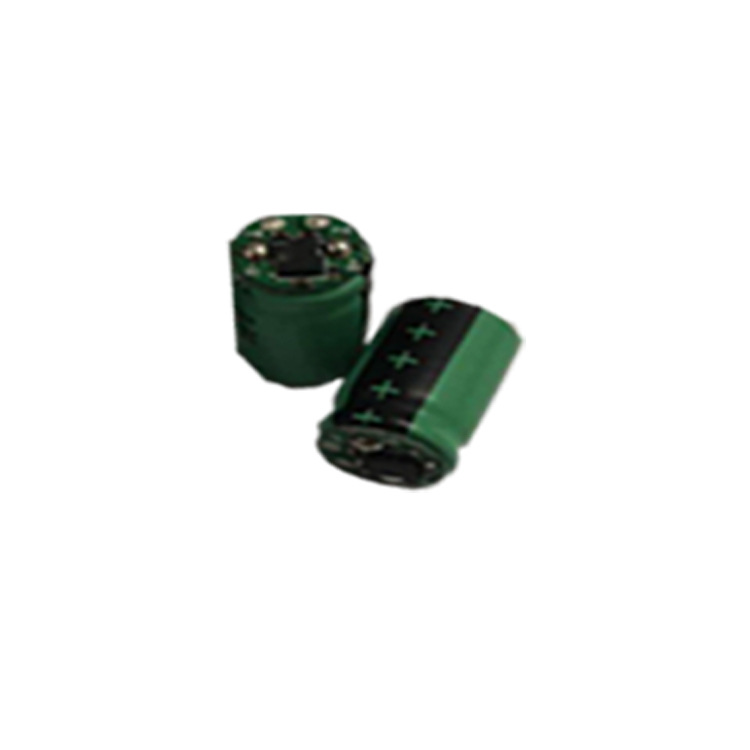

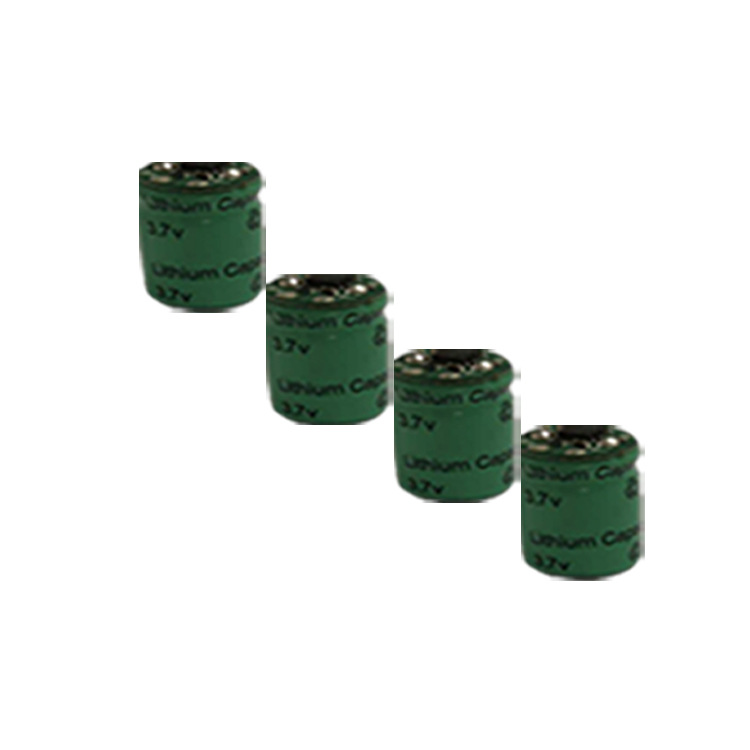

3.7V capacitor lithium battery 1212 mini remote control car 120MAH Farad capacitor small cylindrical rechargeable battery

Short Description:

Specification: ICR1212-3.7V-120mahBattery type: cylindrical lithium batteryCombi...


Product Detail

Product Tags

Specification: ICR1212-3.7V-120mah
Battery type: cylindrical lithium battery
Combination method: 1S
Nominal voltage: 3.7V
Nominal capacity: 120mah
Cycle count: 300-500 times
Scope of use: Consumer electronics
Product certification: ROHS

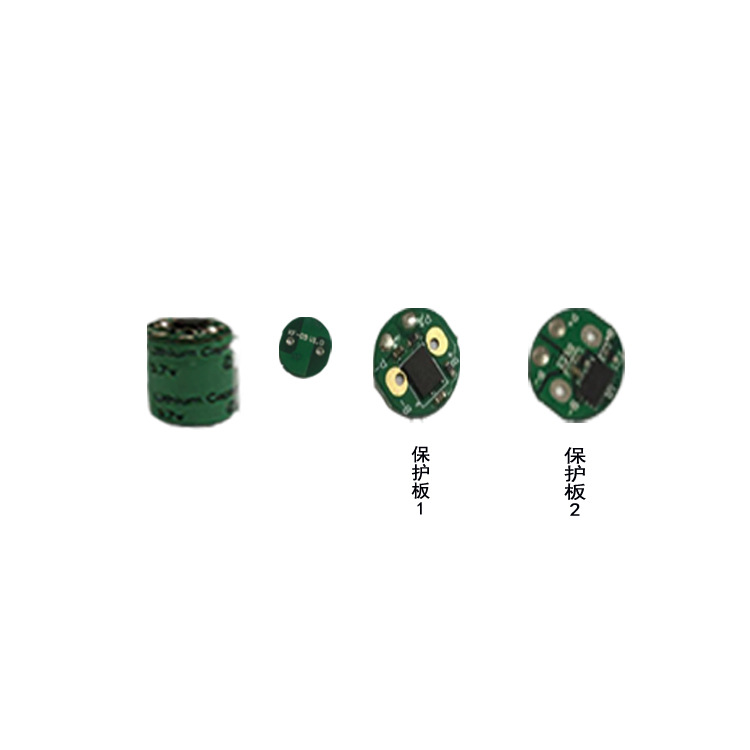

Battery cover cap: flat head+protective plate
Charging voltage: 4.2V
Discharge voltage: 3.0V
Charging current: 120mah
Discharge current: 120mah
Maximum continuous discharge current: 360mah
Maximum continuous charging current: 120mah
Weight: 3.1g
Storage temperature: 5-30 degrees
Product size: 12.3 * 14.8
Shelf life: 1
Imported or not: No
