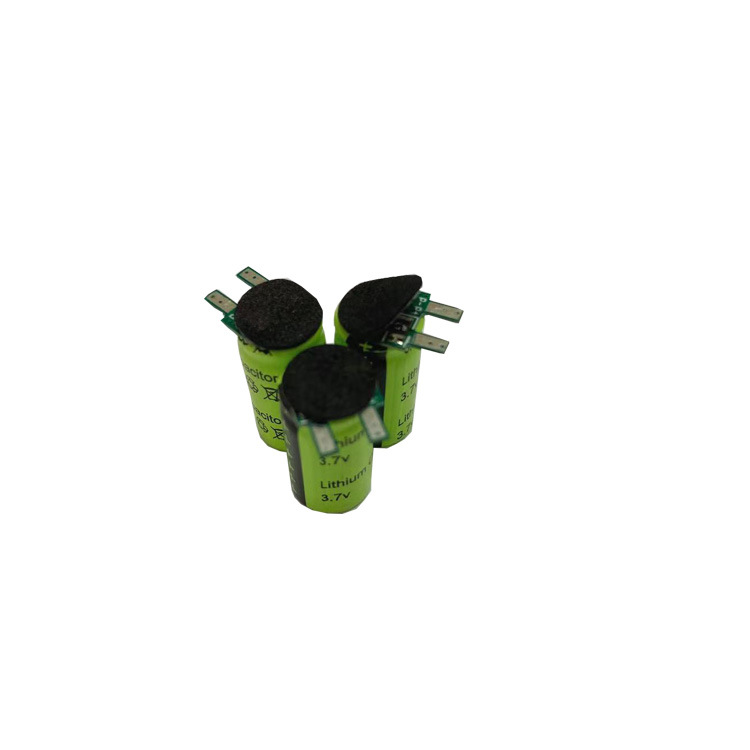

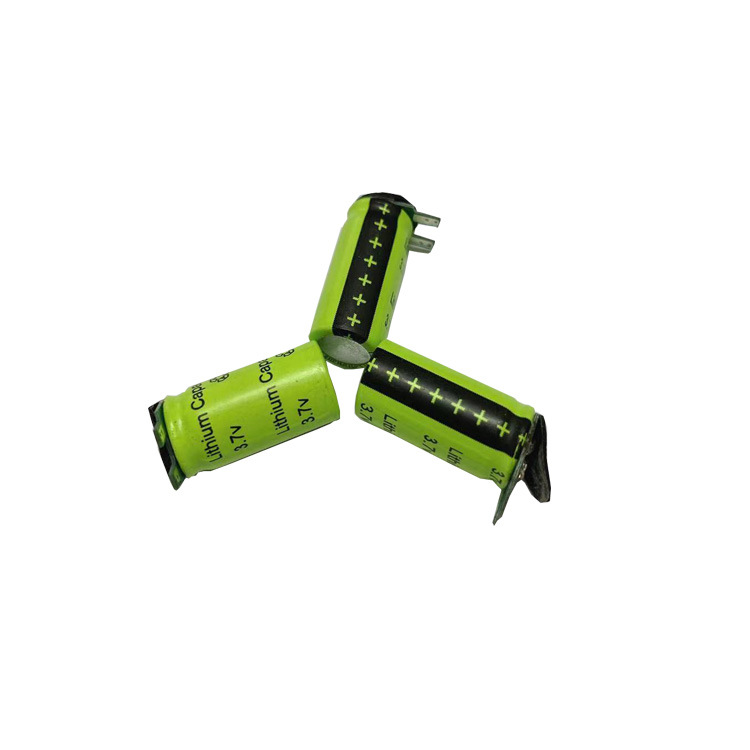

3.7V small cylindrical capacitive lithium battery 10200 90mAh with connecting plate rechargeable battery

Short Description:

Specification: ICR10200HR-3.7V-90mahBattery type: cylindrical lithium batteryCom...


Product Detail

Product Tags

Specification: ICR10200HR-3.7V-90mah
Battery type: cylindrical lithium battery
Combination method: 1S
Nominal voltage: 3.7V
Nominal capacity: 90mah
Cycle count: 500 times
Scope of use: Electronic toys
Product certification: ROHS
Battery cover cap: flat head+protective plate
Charging voltage: 4.2V
Discharge voltage: 3.0V
Charging current: 0.090
Discharge current: 90amh
Maximum continuous discharge current: 900mah
Maximum continuous charging current: 90mah
Weight: 6.5g
Storage temperature: 5-30 degrees
Product size: 10.1 * 22.8mm
Shelf life: 1
Imported or not: No
