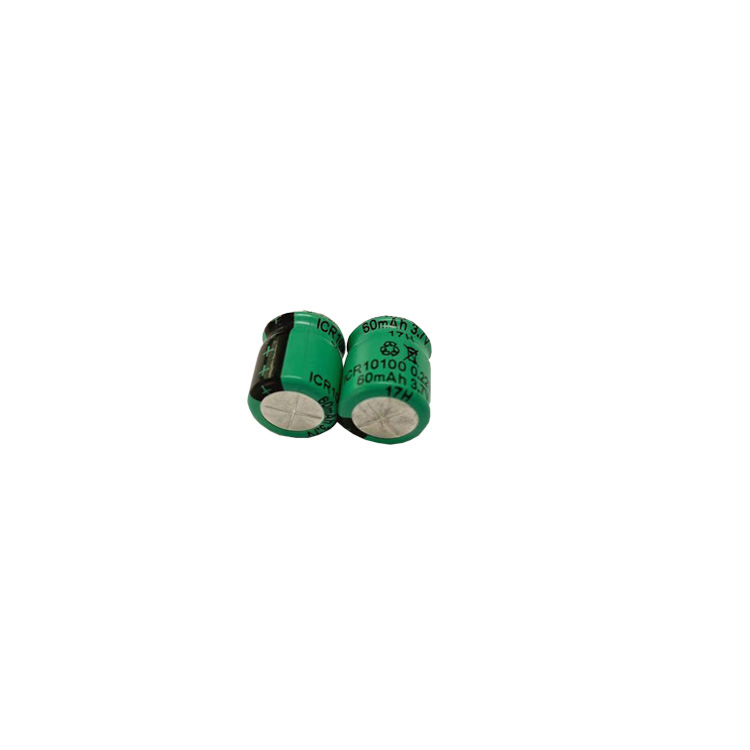

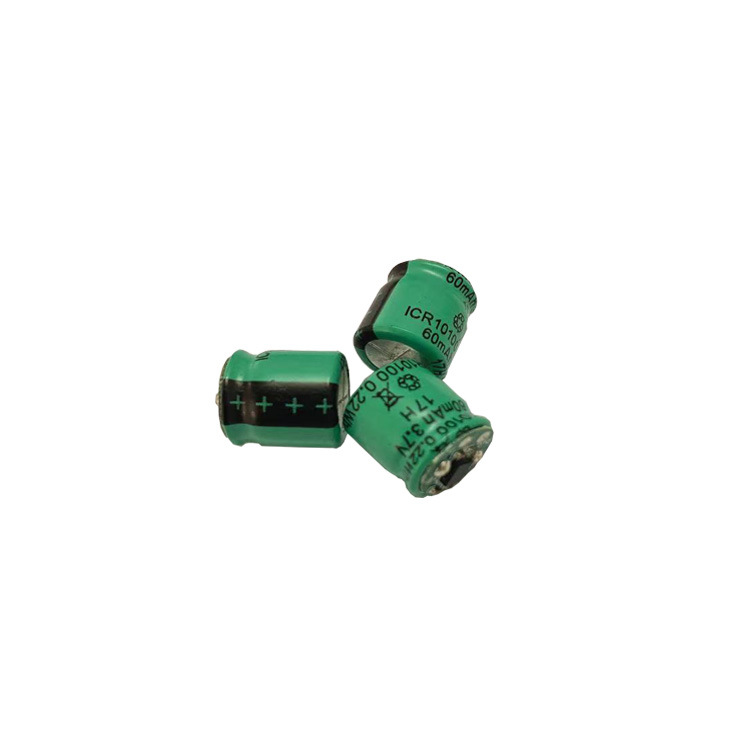

3.7V small cylindrical capacitive lithium battery 1111 80mAh with protective board TWS Bluetooth earphone charging battery

Short Description:

Specification: ICR11110-3.7V-80mahBattery type: cylindrical lithium batteryCombi...


Product Detail

Product Tags

Specification: ICR11110-3.7V-80mah
Battery type: cylindrical lithium battery
Combination method: 1S
Nominal voltage: 3.7V
Nominal capacity: 80mah
Cycle count: 500 times
Scope of use: Bluetooth earphones
Product certification: ROHS

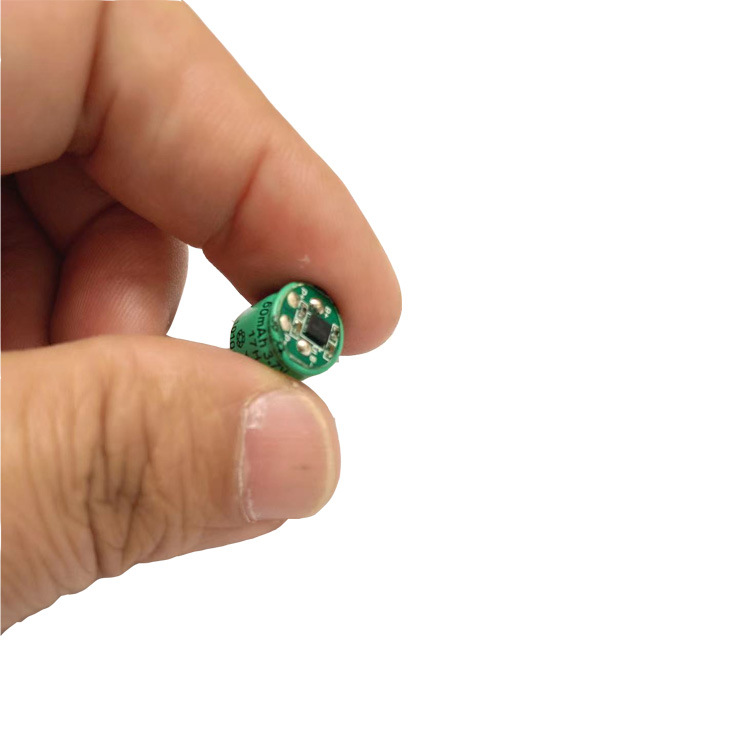

Battery cover cap: flat head+protective plate
Charging voltage: 4.2V
Discharge voltage: 3.0V
Charging current: 0.080
Discharge current: 80mah
Maximum continuous discharge current: 240mah
Maximum continuous charging current: 80mah
Weight: 3.9g
Storage temperature: 5-30 degrees
Product size: 10.4 * 13.8mm
Shelf life: 1
Imported or not: No
